| #1
|
 |
|

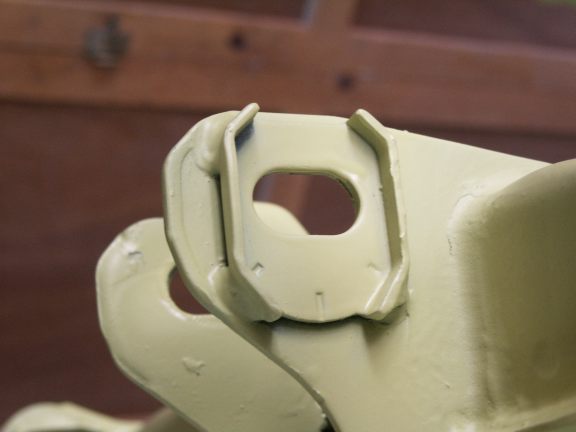

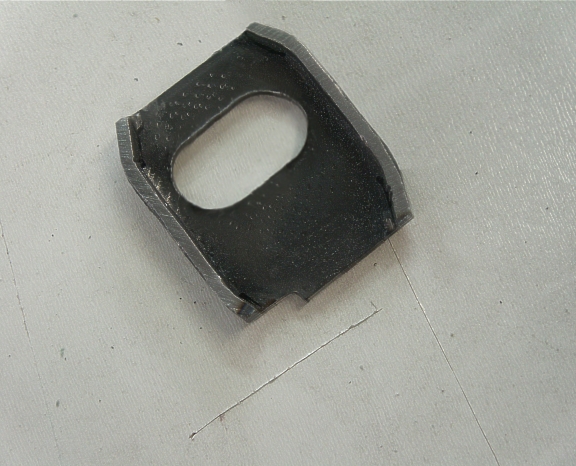

This is the stock mount for the toe-in adjustment.
The camber mounts will be similar with the
exception the adjustment slot will be vertical.
|
| #2 |
 |
|

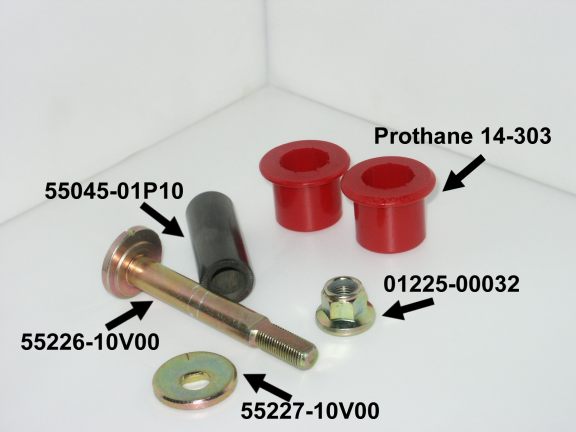

To accomplish this modification, these are the parts
required.
Nissan
Part # 55045-01P10
Nissan Part # 55226-10V00
Nissan Part # 55227-10V00
Nissan Part # 01225-00032
From Bruce Titus Nissan, Tacoma, WA
Prothane Part # 14-303
is part of their kit # 14-2004
|
|
| #3
|
 |
|
The first thing I did was make a detailed drawing of the stock inner mount.
|
|
| #4
|
 |
|

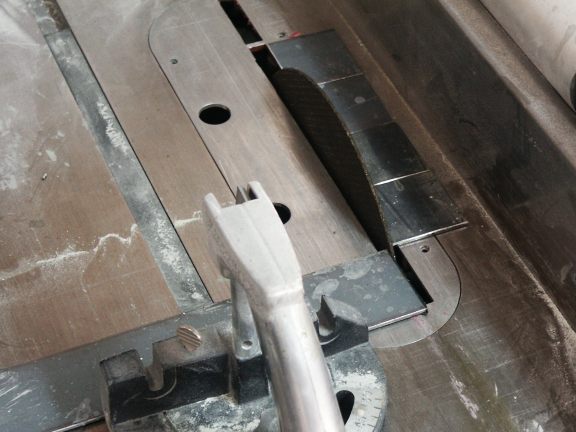

From 2 inch by 1/8" flat stock, I cut four 2" blanks.
|
|
| #5 |
 |
|

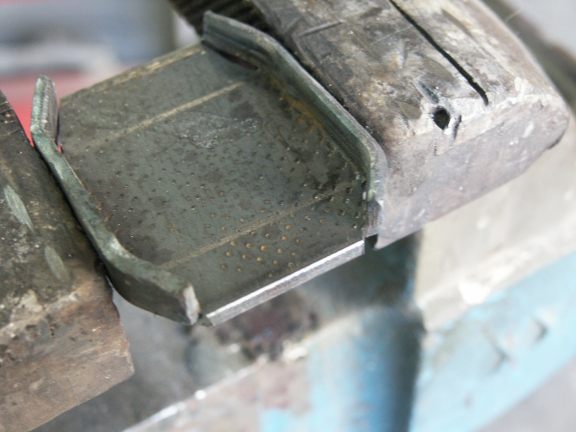

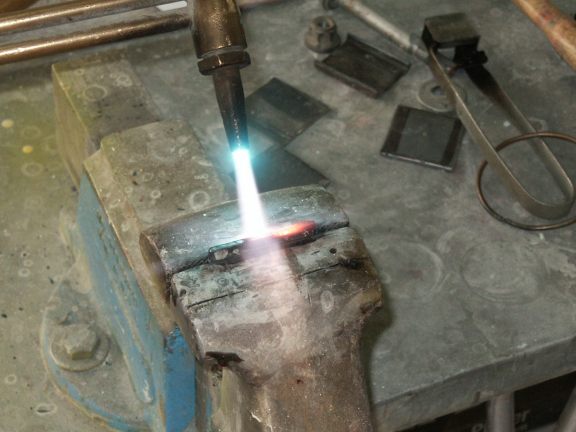

Next I measured and marked the side retaining walls on each of the 2" side at about
0.320"; clamped in a vise at the mark, the exposed area was heated to red hot.
|
|
| #6
|
 |
|

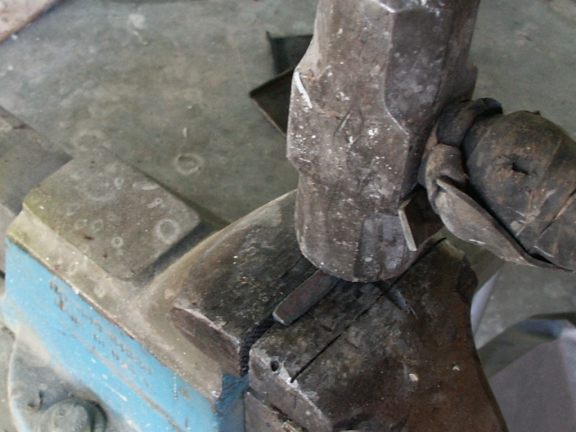

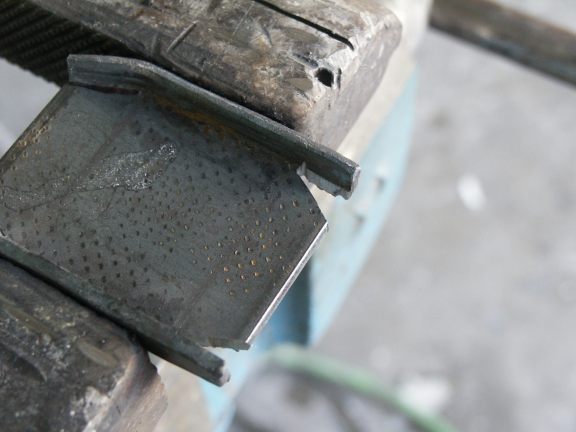

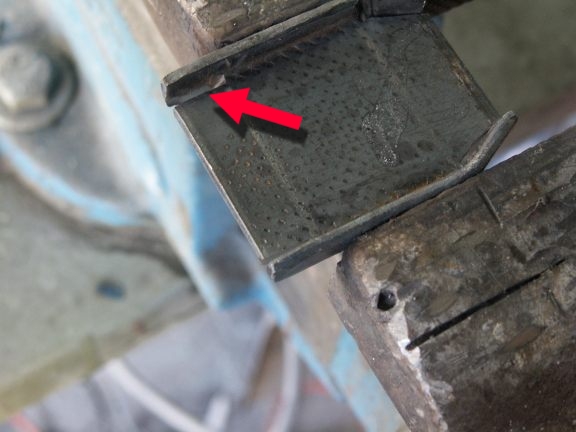

Once heated, the side wall was hammered over.
|
|
| #7
|
 |
|
Each mount was notched next to the wall in compliance to the drawing.
|
|
| #8
|
 |
|

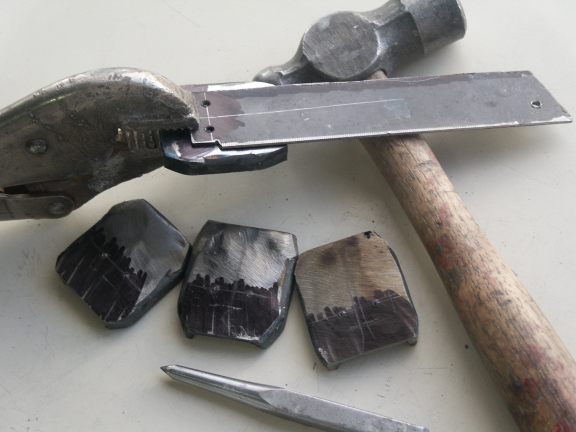

The second step was to remove a small triangle next to the above notch using a 4.5"
right angle grinder with a cutoff blade.
|
|
| #9
|
 |
|
The corners were tapped into place. The mounts were turned upside down and the exposed
seam was MIG welded and ground smooth using a 80 grit "flapper" sanding disk.
|
|
| #10
|
 |
|
Before drilling any holes, I made a hole punch template.
|
|
| #11
|
 |
|
To insure the holes I drilled were correct, I performed a number of tests.
|
|
| #12
|
 |
|
After I center punched the marks for the holes, I drilled pilot holes using a 1/8"
bit.
|
|
| #13
|
 |
|

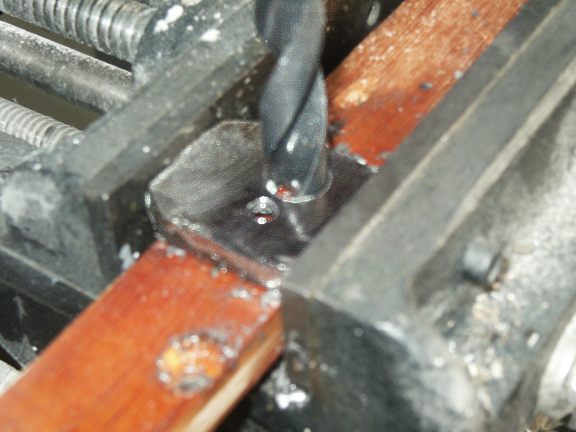

Each mount was then drilled using a 9/16 (0.563) " drill bit.
|
|
| #14 |
 |
|

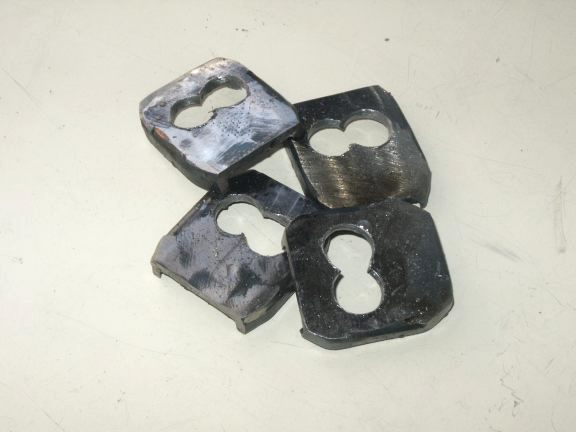

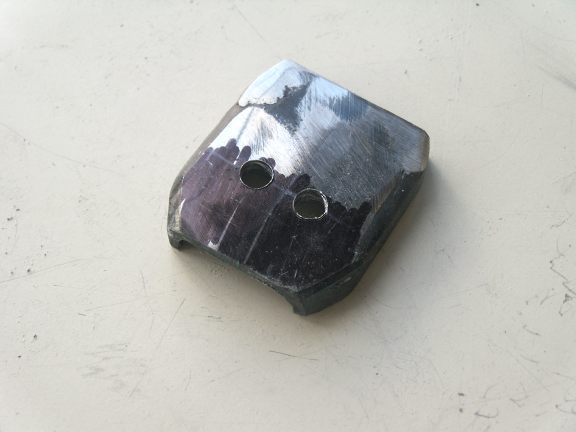

All four mounts drilled and ready for clean up and welding.
|
|
| #15
|
 |
|

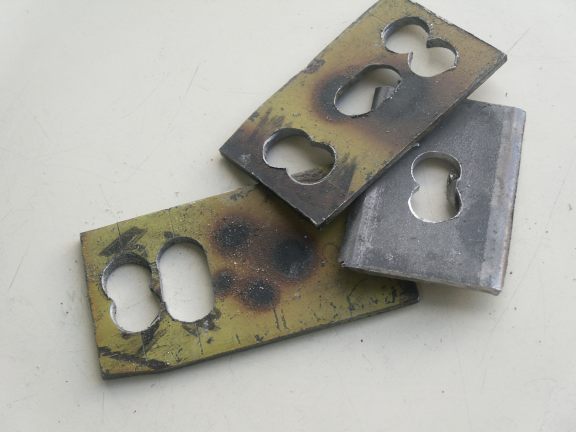

The holes were completed using a table mounted jigsaw.
|
|
| #16
|
 |
|
|
| #17
|
 |
|
Diagram showing the location of the new mount in relationship to the original bolt (pin)
hole in order to reduce negative camber.
|
|
| #18
|
 |
|
Lines were marked perpendicular to the sub-frame bushing journals.
3D image here.
|
|
| #19
|
 |
|

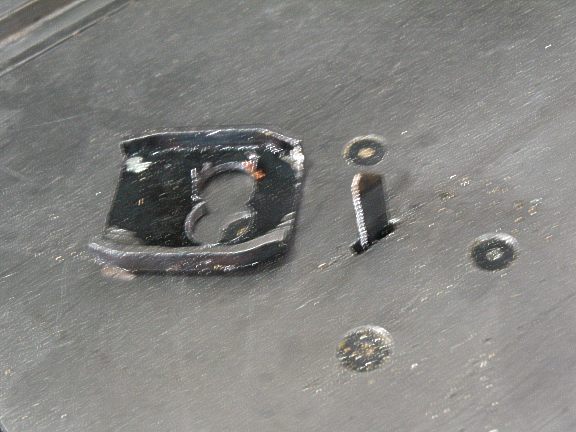

After test fitting, the mounts need a bit of adjustment ...
|
|
| #20
|
 |
|

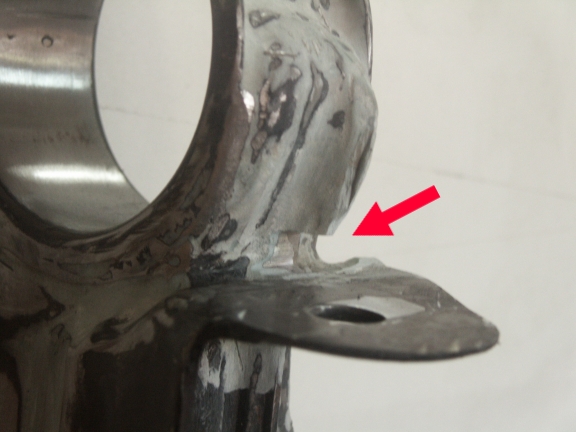

... as well as an area close to the sub-frame bushing journals.
|
|
| #21
|
 |
|

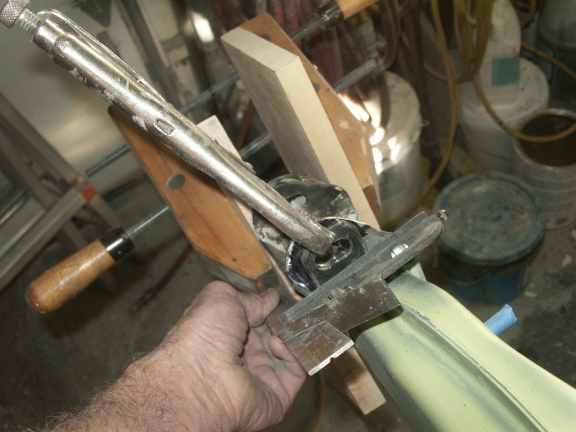

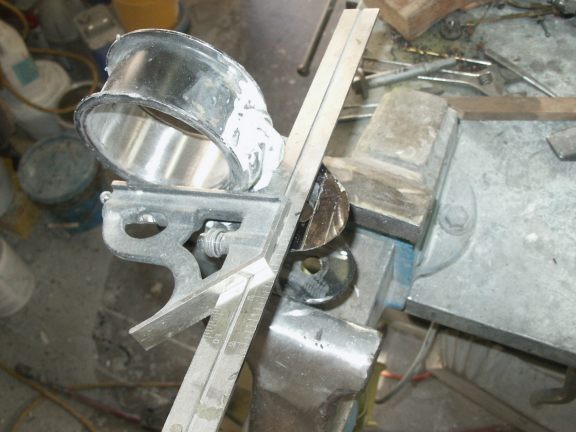

To mark the inside mount, I had to rig up a couple of small 3/4" boards clamped to
the sub-frame bushing journals in order to get my square correctly positioned for marking.
|
|
| #22
|
 |
|

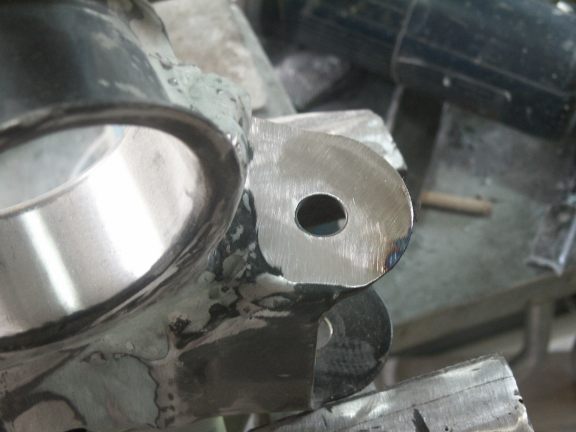

After welding, the holes on the mounting tabs were opened to fit the openings on the
mounts and enlarged to 0.575 to fit the 0.544 diameter bolts
|
|
| #23
|
 |
|

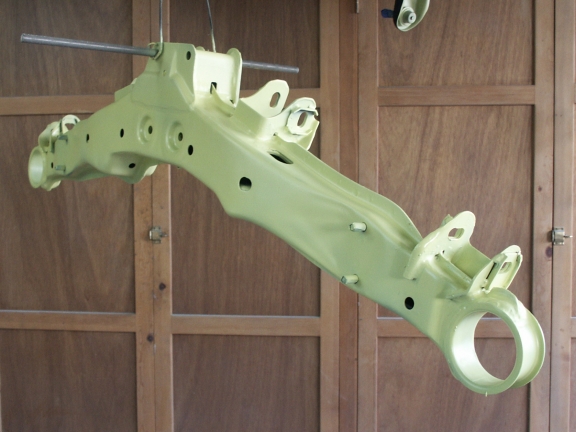

The whole sub frame was wire brushed to remove loosely adhering paint, rust or weld
residue and sprayed with one coat of two part epoxy zinc chromate primer .
3D image here.
|
|
| #24
|
 |
|

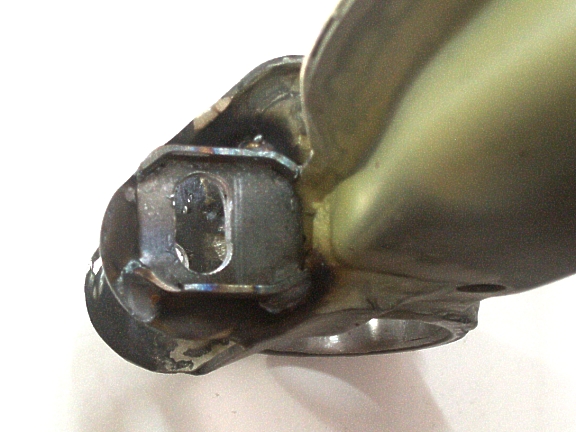

Close up of the mount.
|
|
| #25
|
 |
|

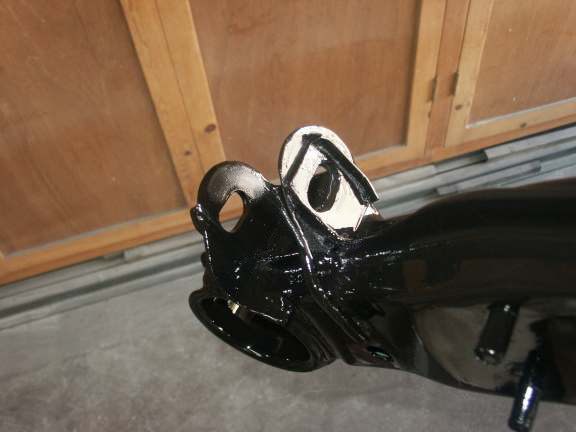

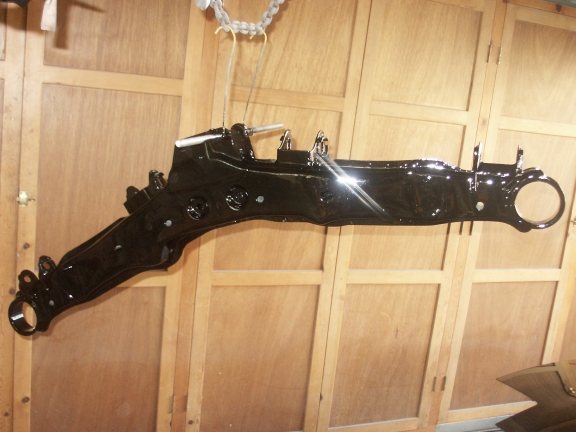

Finished with two coats of two part acrylic urethane for a gloss black appearance .
|
|
| #25
|
 |
|
Near OEM in appearance.
|
|
