Z31, 300ZX 84 - 98 Nuts & Bolts  ............  page 01

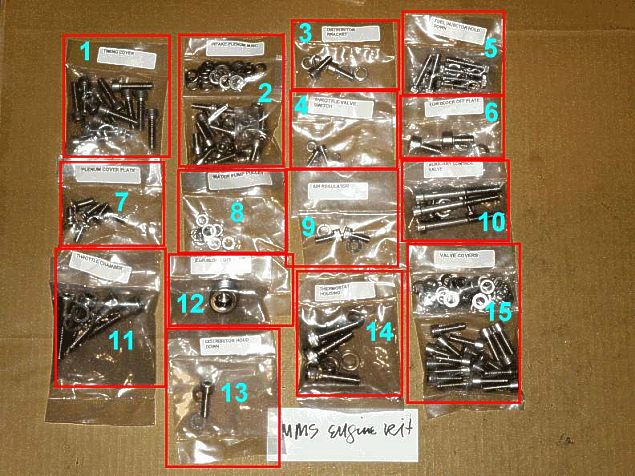

  MMS Engine Kit
Qun.  Description  Size  Length  Grade  Fiche  Part #  Cost/e  Note Photo#
Timing Cover
13   5MM Socket Allen Bolt  6m-1.25  25mm A2-70 1
Intake Plenum (misc.)
6  5MM Socket Allen Bolt  6m-1.00  18mm A2-70 2
6  5MM Socket Allen Bolt  6m-1.00  14mm A2-70 2
10  5MM Socket Allen Bolt  6m-1.00  12mm A2-70 2
15  6MM Washer (W)  6m 2
7  6MM Lock Washer (Lw)  6m 2
Distributor Bracket
2  5MM Socket Allen Bolt/W/Lw  6m-1.00  15mm A2-70 3
Throttle Valve Switch
2  3MM Socket Allen Bolt/W/Lw   4mm-0.70  10mm A2-70 4
Fuel Injector Hold Down
6  10MM Hex Head Bolt/Lw   6m-1.00  30mm A2-70 5
EGR Block Off Plate
2  6MM Socket Allen Bolt/Lw   8m-1.25  16mm A2-70 6
Plenum Cover Plate
6  4MM Countersunk Screw  6m-1.00  12mm 7
Water Pump Pully
4  10MM Flat Nut/Lw  6m-1.00 8
Air Regulator
2  5MM Socket Allen Bolt/Lw  6m-1.00  14mm A2-70 9
Auxilliry Control Valve
2  Phil. Pan Head Screw/Lw  4mm-0.70  12mm A2-70 10
3  6MM Socket Allen Bolt/Lw  6m-1.00  55mm A2-70  24mm threaded 10
Throttle Chamber (Body)
4  6MM Socket Allen Bolt/Lw  8m-1.25  40mm A2-70  31mm threaded 11
EGR Block Off Plug (on manifold)
1  3/8" drive  pipe plug  1/2" NTP  1/2"  OEM 22m-1.50 12
Distributor Hold Down
1  5MM Socket Allen Bolt/W/Lw  6m-1.00  20mm A2-70 13
Thermostate Housing
3  6MM Socket Allen Bolt/W/Lw  8m-1.25  30mm A2-70 14
Valve Covers
18  5MM Socket Allen Bolt/W/Lw  6m-1.00  20mm A2-70 15

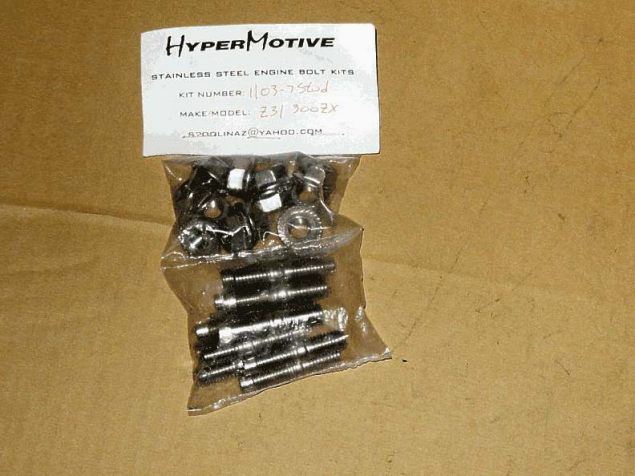

  HypertMotive (Adam - "spooliaz")
Qun. Description Size Length Grade Fiche Part # Cost/e Note Photo#
Exhaust Manifold SS Studs
12  3MM Socket Allen dbl end Stud  8m-1.25  38mm A2-70 $0.89
12  13MM Serrated Flange  Nut  8m-1.25 A2-70
  Local hardware store
Qun.  Description  Size  Length  Grade  Fiche  Part #  Cost/e  Note Photo#

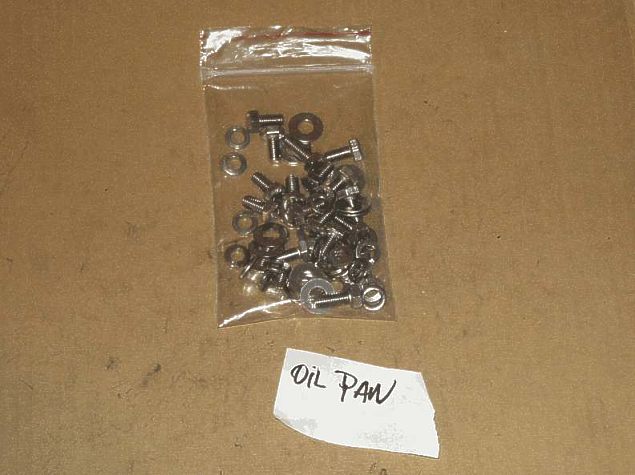

Oil Pan
18  10MM Hex Head Bolt/W/Lw  6m-1.00  12MM A2-70  2-E10 $0.77
