84 - 89 300ZX (Z31) Vacume Line Photo List.


This site is under construction
This is not a complete list. It lacks the AC vac. lines
and some of the lines from the Vacuum Canister.
To those that would like to contribute to this list with

part descriptions and length of hose, I will list a credit
for you in this space. Contact me at:
If you find errors please let me know.

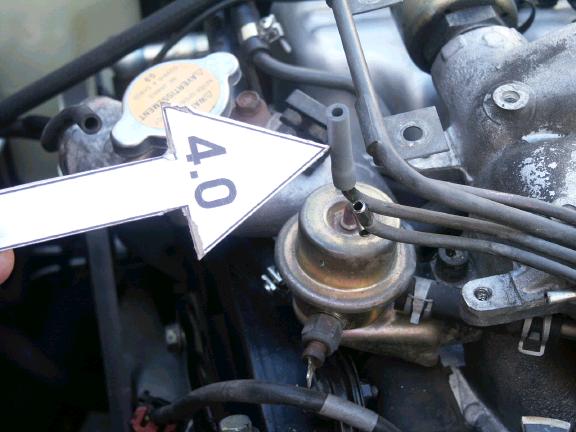

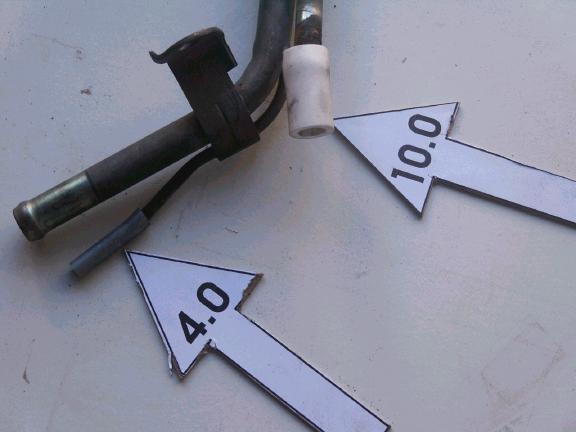

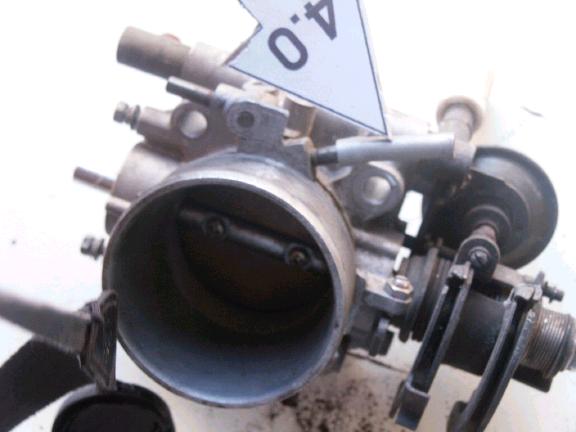

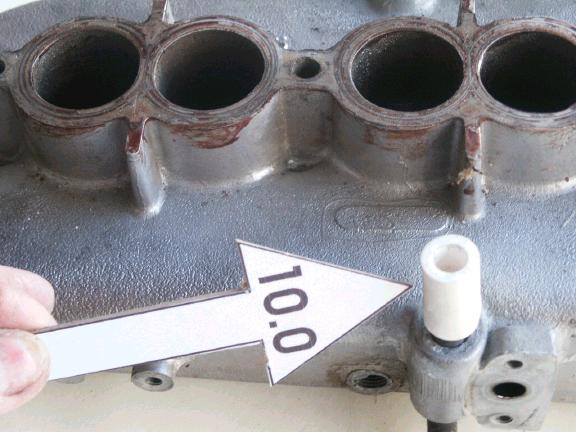

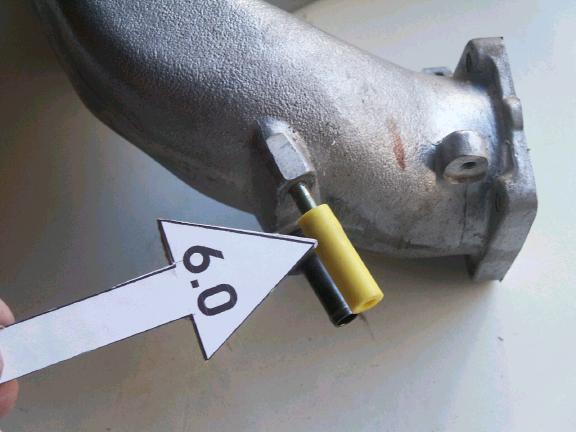

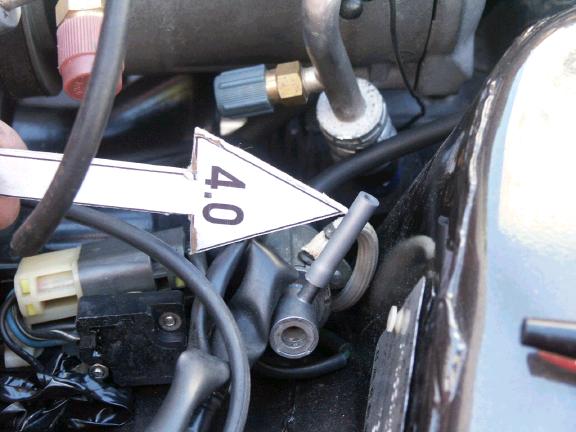

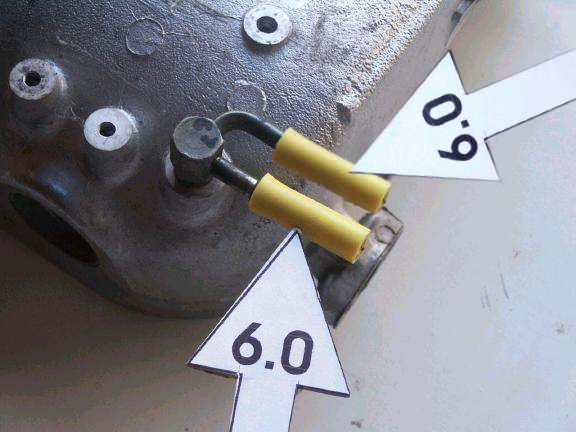

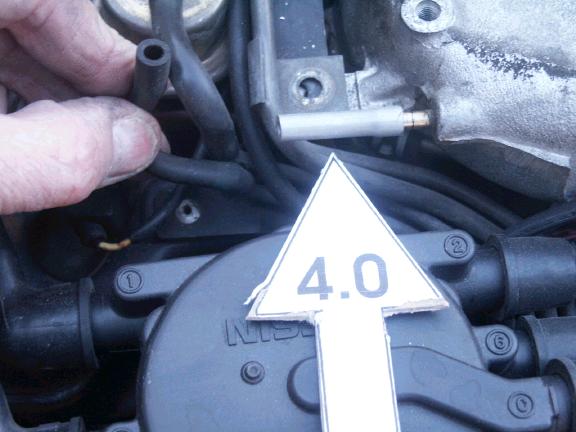

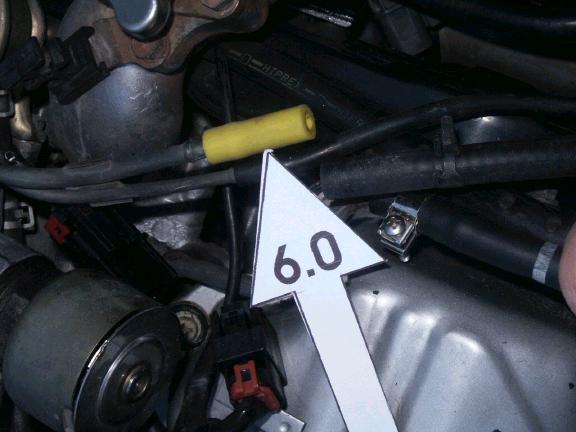

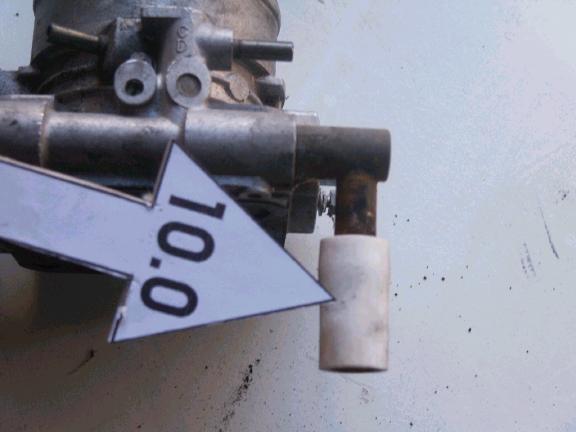

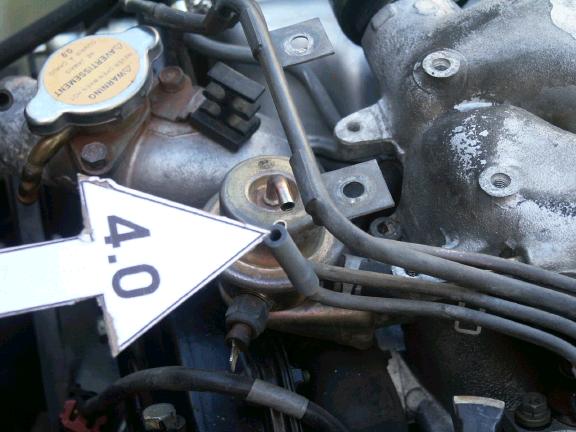

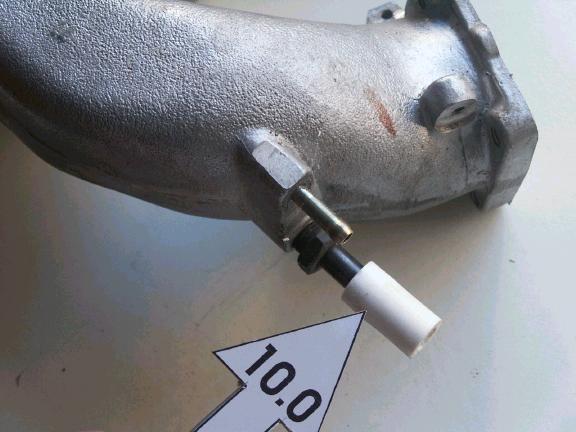

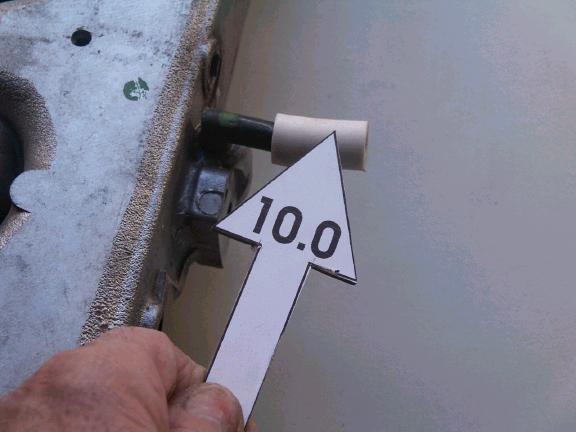

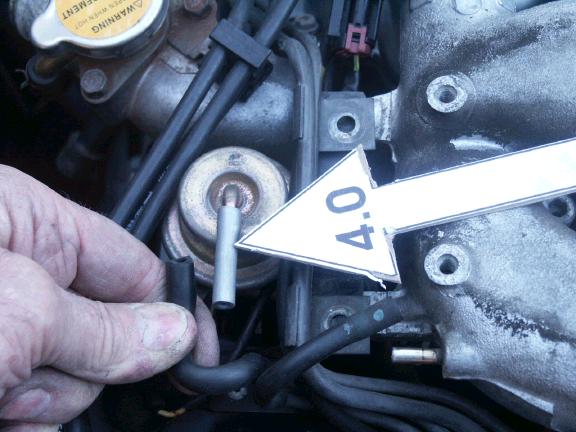

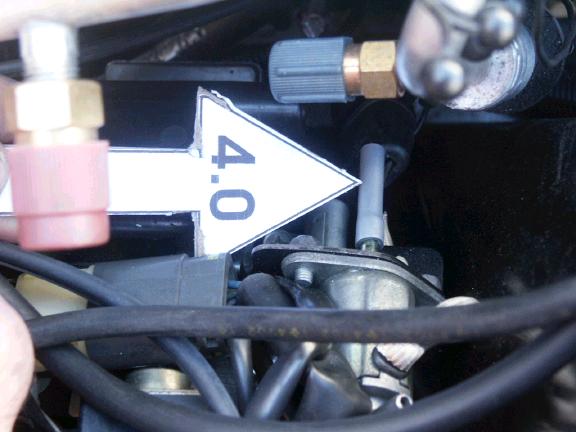

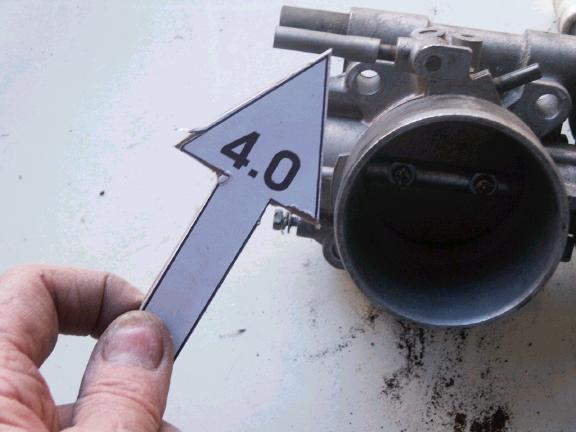

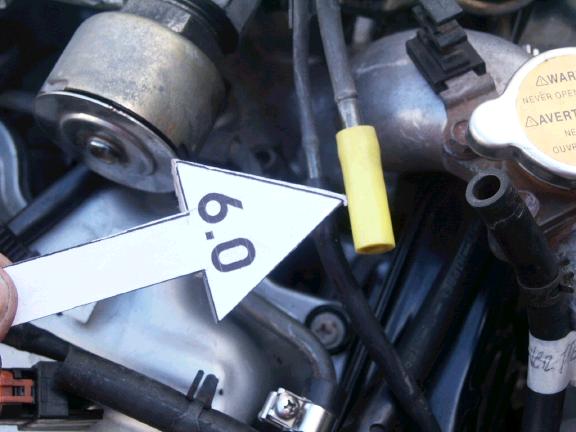

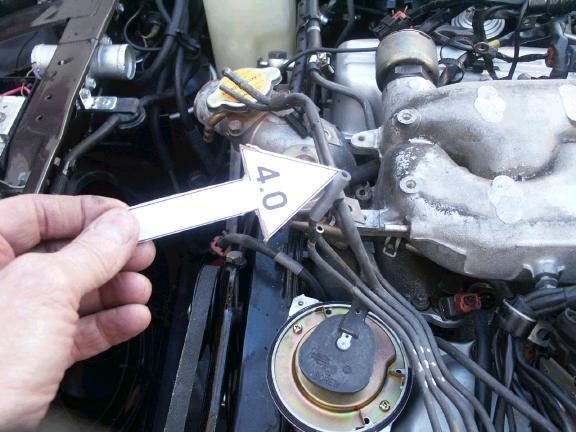

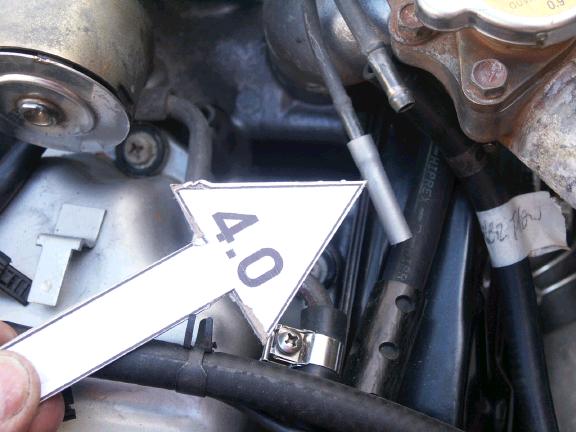

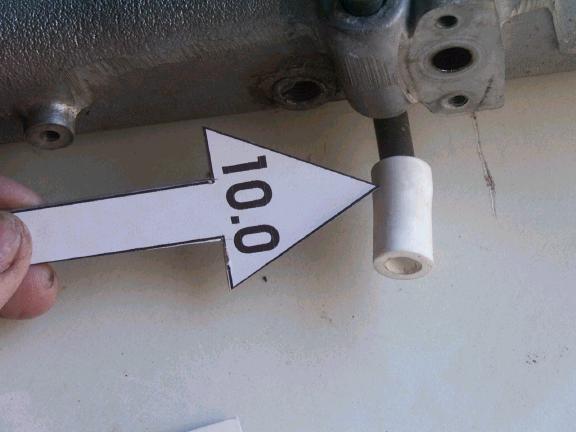

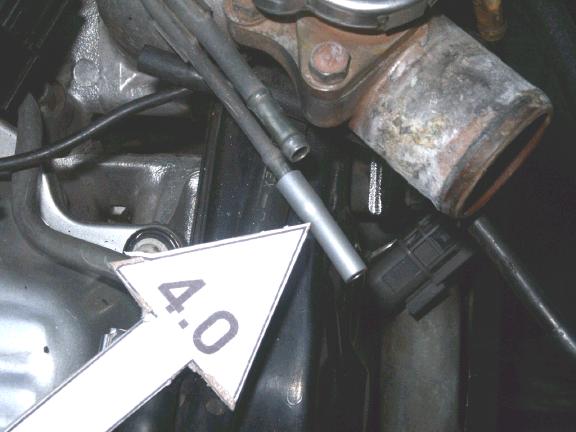

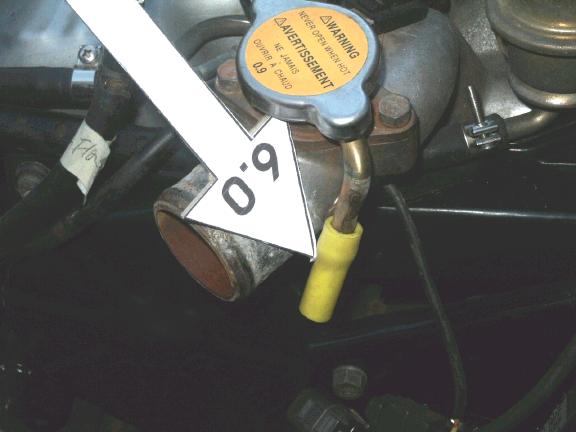

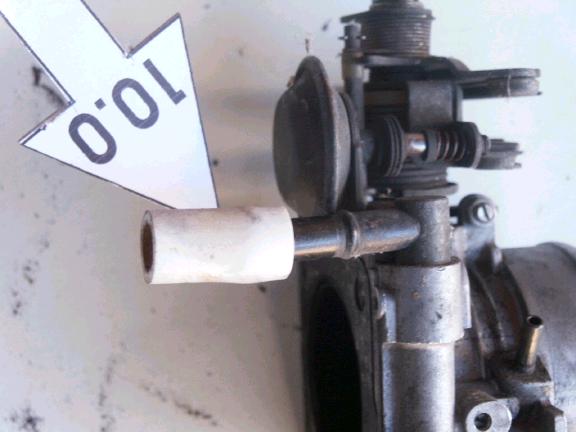

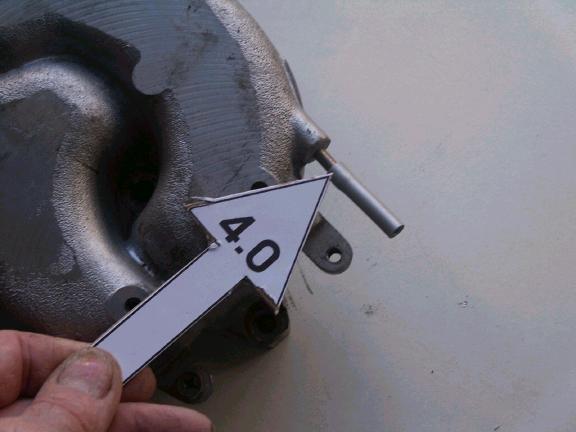

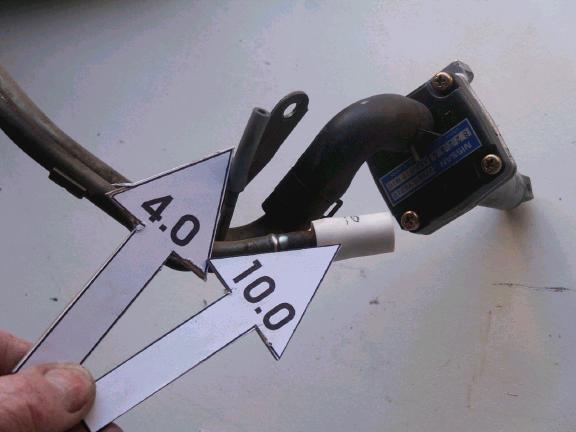

Numbers on pointers represent hose inside diameter in millimeters,

Colored silicone hose is from HoseTechniques.
